Welding Transformers
Welding Transformers
Watercooled welding transformers for resistance welding — TGE three-phase rectifier units, capacitor discharge / pulse transformers, MFDC machine and gun transformers, AC machine, multi-welding and suspended transformers, plus US-frame MFDC units.
Category
Has spec
Showing 81 of 81 transformers • Page 1 of 9
Three-Phase Rectifier Units (TGE) (3)
Three-phase DC rectifier welding transformers for high-performance resistance welding requiring stable, ripple-free welding current.

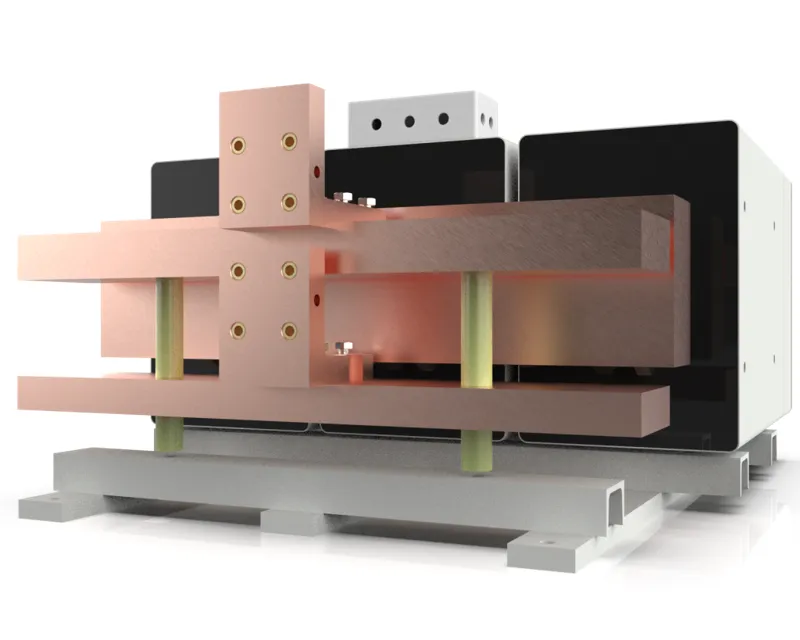

3 phase rectifier unit 3 x 160 kVA
Nominal power (50% d.c.)3 x 160 kVA
Permanent current16 kA
Secondary voltage9,6 ... 13,5 V
Rectifier3M2

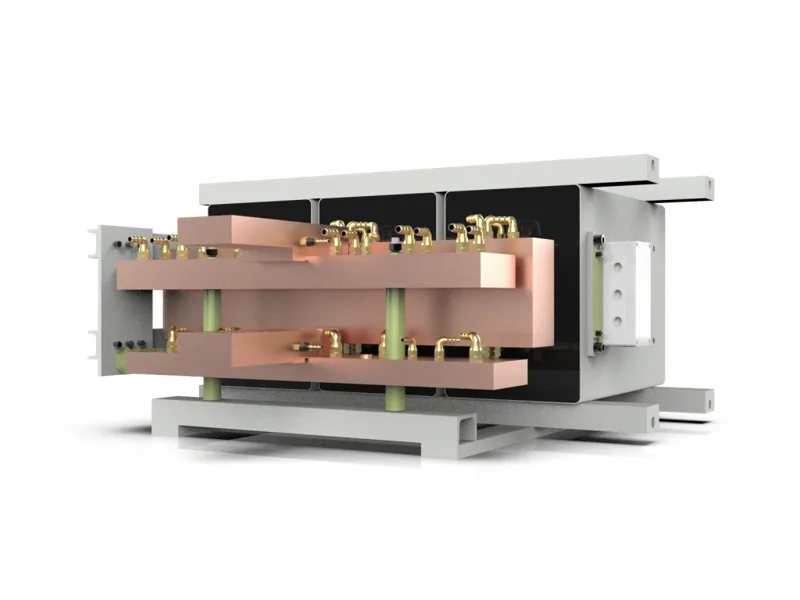

3 phase rectifier unit 3 x 197 kVA
Nominal power (50% d.c.)3 x 197 kVA
Permanent current25 kA
Secondary voltage8,7 ... 10,8 V
Rectifier3M2

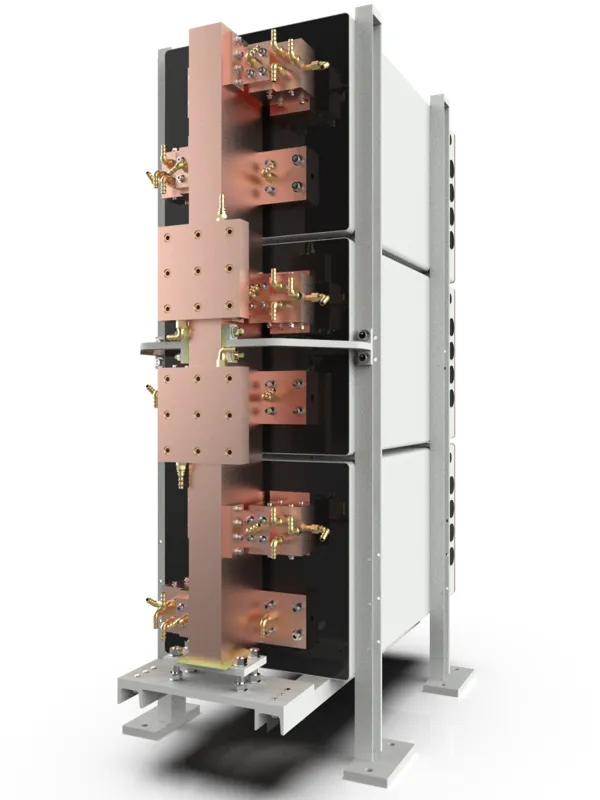

3 phase rectifier unit 3 x 535 kVA
Nominal power (50% d.c.)3 x 535 kVA
Permanent current25 kA
Secondary voltage20,9 ... 41,3 V
Rectifier3M2
Capacitor Discharge / Pulse Transformers (7)
Pulse transformers for capacitor discharge welding (CD welding) — short, high-energy pulses for projection and special welding.
Pulse transformer 1,2kJ
Maximum puls energy1,2 kJ
Secondary voltages20 V
Capacitor voltage2000 V
Pulse transformer 10kJ - 1
Maximum puls energy10 kJ
Secondary voltages44,4 ... 133,3 V
Capacitor voltage1000 V
Pulse transformer 12kJ - 1
Maximum puls energy12 kJ
Secondary voltages22,5 ... 45,0 V
Capacitor voltage900 V
Pulse transformer 12kJ - 2
Maximum puls energy12 kJ
Secondary voltages61,7V
Capacitor voltage3200 V
Pulse transformer 13kJ
Maximum puls energy13 kJ
Secondary voltages29,5 ... 59,1 V
Capacitor voltage1300 V
Pulse transformer 18kJ
Maximum puls energy18 kJ
Secondary voltages22,5 ... 45,0 V
Capacitor voltage900 V
Pulse transformer 20kJ - 7
Maximum puls energy20 kJ
Secondary voltages10,0 V
Capacitor voltage3000 V
