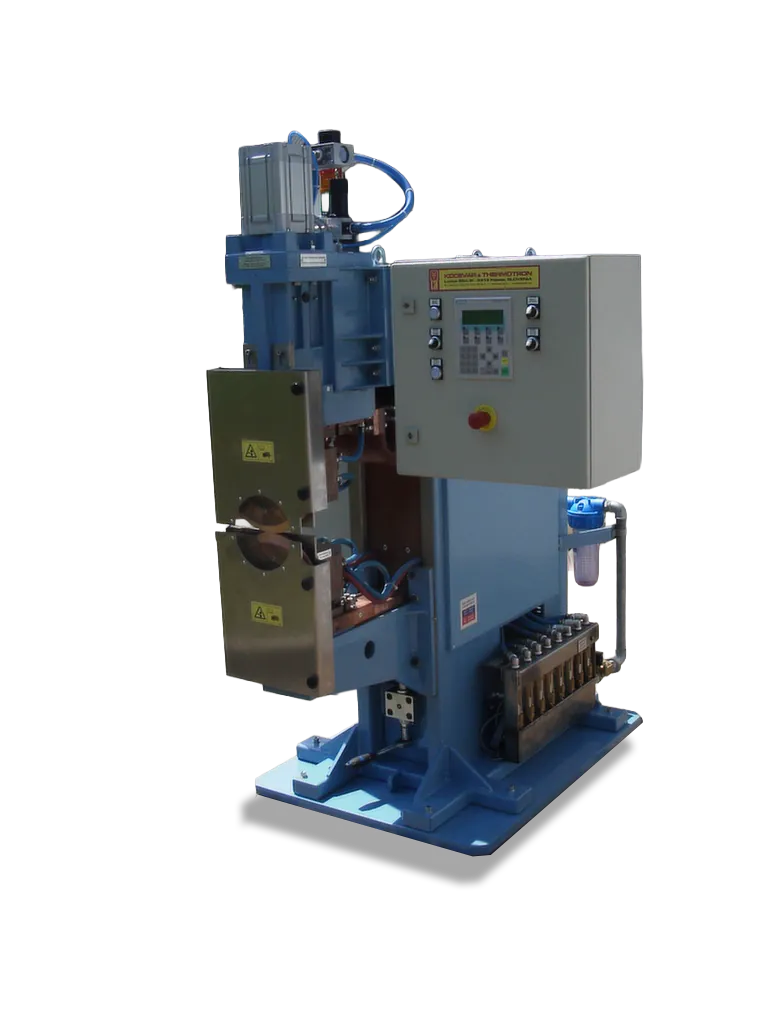

Seam welding machine for door profiles

Design characteristics

• Precision welding force setting min 10 daN – max 2950 daN
• Overload monitoring of diodes, thyristors and transformers
• Welding arm distance continuously variable from 0-230 mm
• Color according to desire
• Vacuum encapsulated transformers
• Cylinders in several versions
• Welding transformers power up to 1000 kVA / 50% ED

Description

This purpose-built machine is designed for resistance seam welding of door profiles. Motor-driven seam wheels produce a continuous, uniform weld along the entire length of the profile, while dedicated guiding and clamping elements keep the workpiece in a repeatable position throughout the welding cycle. The result is consistent weld quality and short cycle times, even in demanding serial production.

Build quality

The robust steel frame, pneumatic actuation, and integrated control cabinet with programmable welding control are built for continuous industrial operation. Water-cooled seam welding heads, an integrated cooling-water distribution system, and a signal tower for machine status ensure reliable operation, while the ergonomic operator controls and safety features guarantee safe and productive everyday use.

Standard equipment

• Pneumatic manometer
• Height adjustment of the lower welding table with spindle and ratchet
• Built-in welding spot counter
• Overload monitoring of diodes, thyristors and transformers
• Pneumatic cylinder with adjustable approach hub and work hub
• OFF valve for electrode adjustment
• Flow sensor for cooling water

Options

• Support bar for a lower table
• Servo Welding actuator
• Built-in electrode holder
• Penetration way sensor
• Proportional valve
• HMI (Siemens or other) human-machine interface
• PLC (Siemens or other) programmable logical controller
• Remote access to the machine for easy setting up and maintaining
• Rugowsky Welding current Sensor
• Welding voltage sensor
• Welding force sensor
• Both hand safety start
• Twin foot pedal
• Adjustable working table with bristles
• Cooling water distributor with flow sensors on each circuit
• Filter for cooling water
• De-mineralization system for cooling water
• Lexan cover with lock for welding controller
