Welding machine for aluminum frames for the automotive industry
Dedicated CNC-driven projection welding machine for precise, repeatable welding of aluminum frame assemblies used in automotive production.
Design characteristics
- Precision welding force setting min 10 daN – max 2950 daN
- Overload monitoring of diodes, thyristors and transformers
- Welding arm distance continuously variable from 0-230 mm
- Color according to desire
- Vacuum encapsulated transformers
- Cylinders in several versions
- Welding transformers power up to 1000 kVA / 50% ED
Description

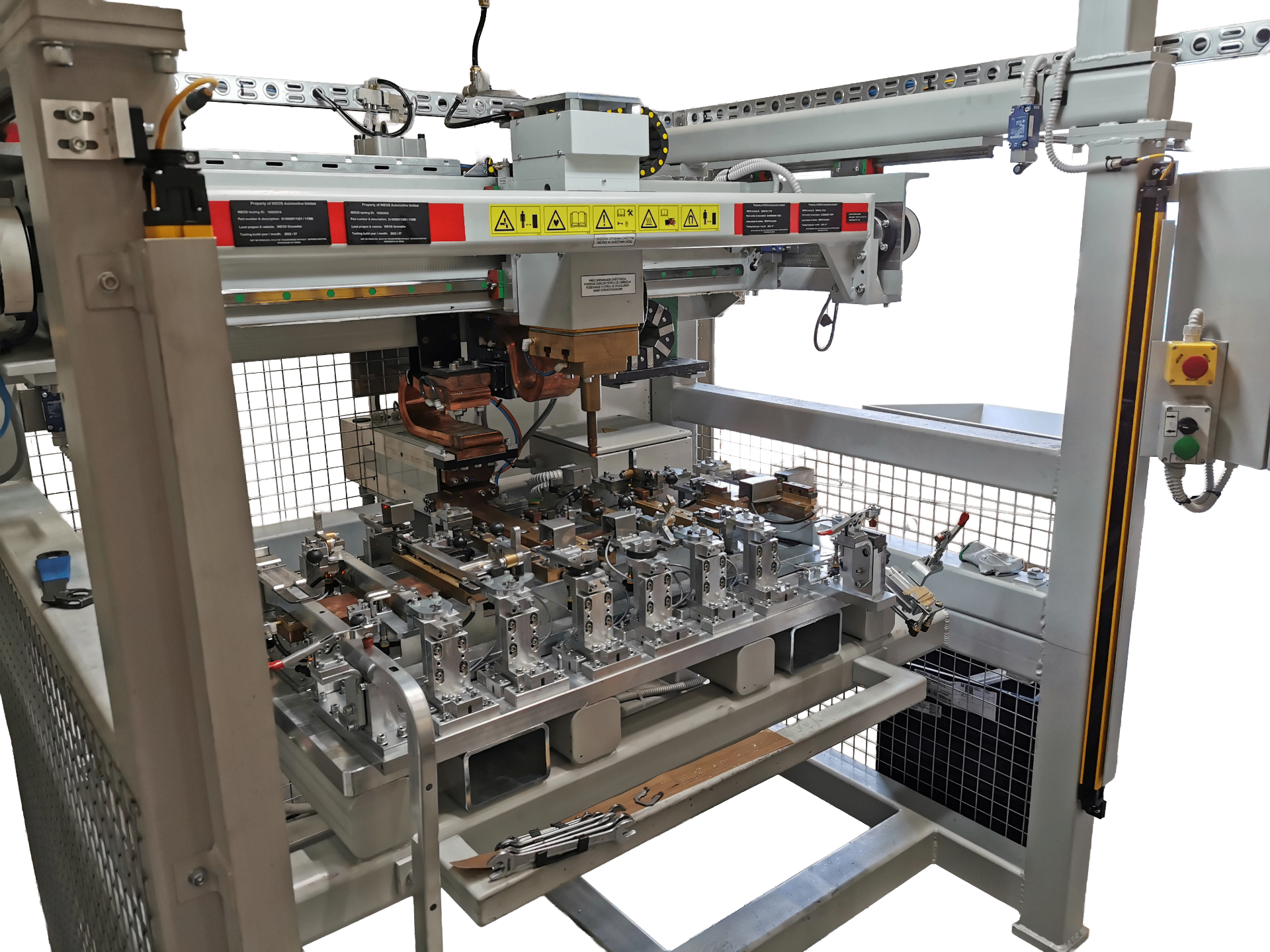

This purpose-built machine is engineered for resistance projection welding of aluminum frame components for the automotive industry. The CNC-controlled welding head travels above a multi-station fixture, executing programmed weld points on each nest with high accuracy and short cycle times. Dedicated tooling holds the aluminum frame and its inserts in repeatable position, ensuring consistent weld quality across the entire assembly.
Build quality
The robust steel portal frame, integrated safety light curtains, and KOČEVAR control system are designed for demanding serial automotive production. Pneumatic clamping, MFDC welding technology, and an HMI touch panel provide reliable operation, full process control, and easy changeover between product variants.
Standard equipment
- Pneumatic manometer
- Height adjustment of the lower welding table with spindle and ratchet
- Built-in welding spot counter
- Overload monitoring of diodes, thyristors and transformers
- Pneumatic cylinder with adjustable approach hub and work hub
- OFF valve for electrode adjustment
- Flow sensor for cooling water
Options
- Support bar for a lower table
- Servo Welding actuator
- Built-in electrode holder
- Penetration way sensor
- Proportional valve
- HMI (Siemens or other) human-machine interface
- PLC (Siemens or other) programmable logical controller
- Remote access to the machine for easy setting up and maintaining
- Rugowsky Welding current Sensor
- Welding voltage sensor
- Welding force sensor
- Both hand safety start
- Twin foot pedal
- Adjustable working table with bristles
- Cooling water distributor with flow sensors on each circuit
- Filter for cooling water
- De-mineralization system for cooling water
- Lexan cover with lock for welding controller
