Products
Welding Pincers
Precision welding pincers for standard welding on difficult geometries, hot staking, and micro applications.
SZ-2002
- Welding pincer for max. 200N welding force
- High compatibility due to modular principle
- Compact, flexible design with minimum dead weight
- Precise positioning accuracy, stability and load capacity due to preloaded ball guides
- Best reproducibility due to form closure
- Excellent settling behavior due to tension-free torsion protection
- Easy adjustment of sensors and stroke adjustments
- Suitable for horizontal and vertical installation
- Pivoting basic electrode holders for welding on complicated component geometries
- Orientation on the weld metal by means of a floating mechanism
- Mass balance for vertical installation
- Lifting module for independent actuation of the right-hand gripper jaw
- Problem-free retrofitting of displacement and force measuring systems
SZ-2002 — Fields of application
- Suitable for standard welding on difficult geometries and hot staking
- Automotive: Welding overmoulded stamped bent parts to components (e.g. resistors on stamped bent parts), welding actuator for throttle valve
- Electrics/Electronics: Welding of enameled wires in a plate, welding of compacted strands <2mm² in cross section
- Consumer goods industry: Welding thin sheets for the production of perforators
- Lamp industry: Welding filaments of tungsten onto molybdenum pins

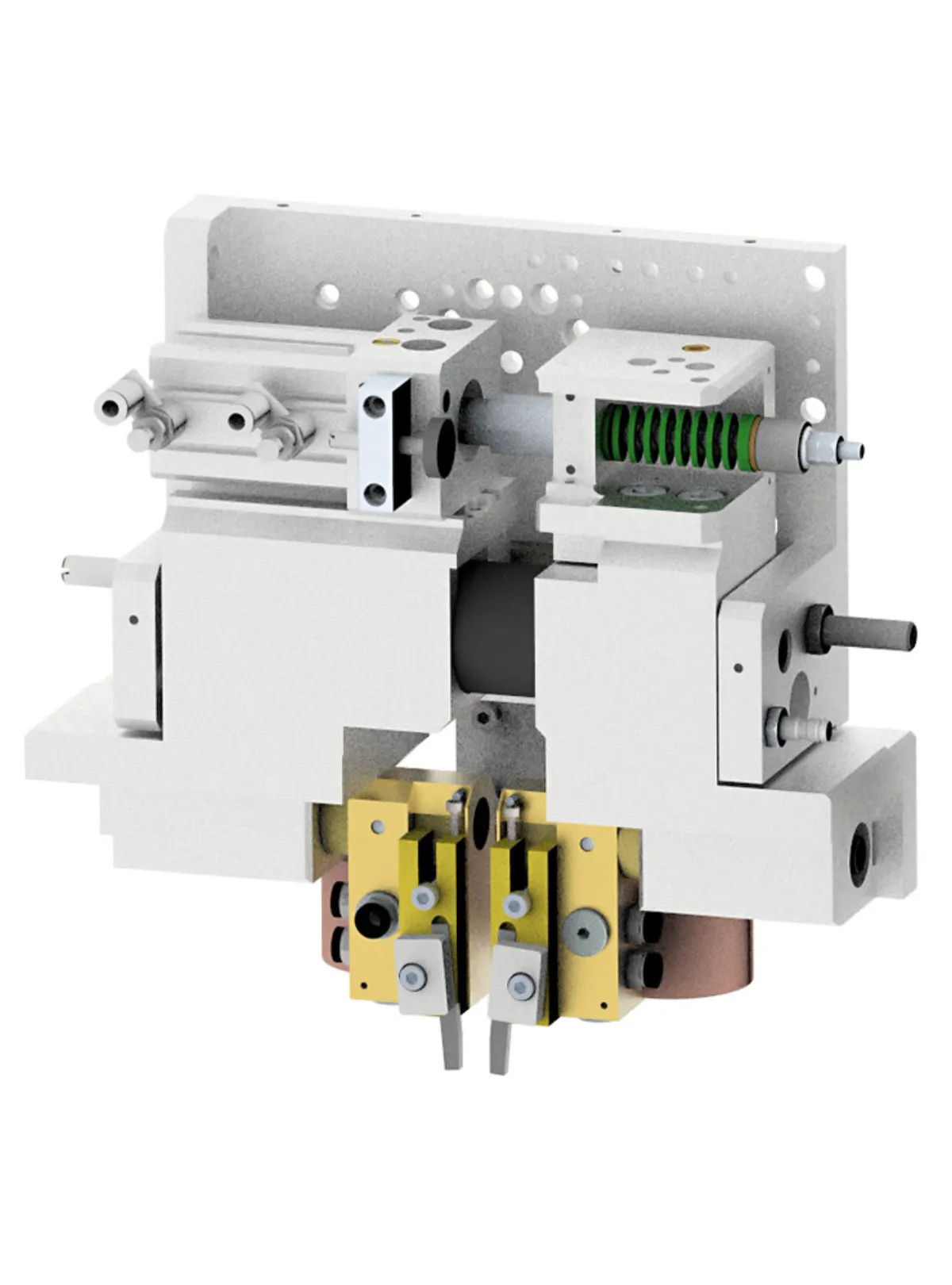

SZ-2005
- Welding pincer for max. 300N welding force
- High compatibility due to modular principle
- Compact, flexible design with minimum dead weight
- Precise positioning accuracy, stability and load capacity due to preloaded ball guides
- Compatible with third-party products
- Best reproducibility due to form closure
- Excellent settling behavior due to tension-free torsion protection
- Easy adjustment of sensors and stroke adjustments
- Pivoting basic electrode holders for welding on complicated component geometries
- Orientation on the weld metal by means of a floating mechanism
- Synchronization of the two pliers jaws can be retrofitted at any time
- Problem-free retrofitting of the displacement and force measuring system
SZ-2005 — Fields of application
- Suitable for standard welding on difficult geometries and hot staking
- Automotive: Welding overmoulded stamped bent parts to components (e.g. resistors on stamped bent parts), welding actuator for throttle valve
- Electrics/Electronics: Welding of enameled wires in a plate, welding of compacted strands <2mm² in cross section
- Consumer goods industry: Welding thin sheets for the production of perforators
- Lamp industry: Welding filaments of tungsten onto molybdenum pins

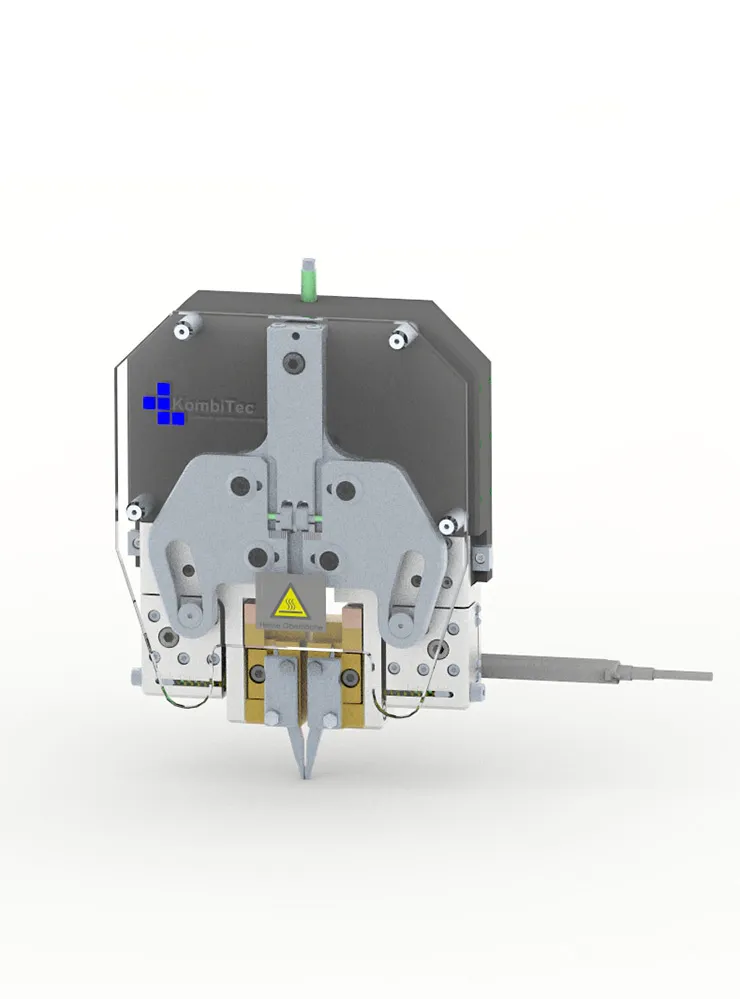

SZ-2030
- Welding pincer for additional forces from 30N to 300N
- Modular principle and compatibility with other models
- Compact, flexible design with minimum dead weight
- Exact positioning accuracy, stability and load capacity due to rolling bearings
- Best reproducibility due to infeed baffles
- Excellent settling behavior due to spring system
- Simple retrofitting of position measuring system
- Optional 'floating' storage of the entire pincer possible
SZ-2030 — Fields of application
- Suitable for standard welding of difficult geometries and hot staking
- Automotive: Welding of overmoulded stamped and bent parts with components
- Electrics/Electronics: Welding of enameled wires in a plate, welding of compacted strands <2mm² in cross section
- Consumer goods industry: Welding thin sheets for the production of sheet materials with holes
- Lamp industry: Welding filaments of tungsten onto molybdenum pins
- Solar system construction: Solar cell production

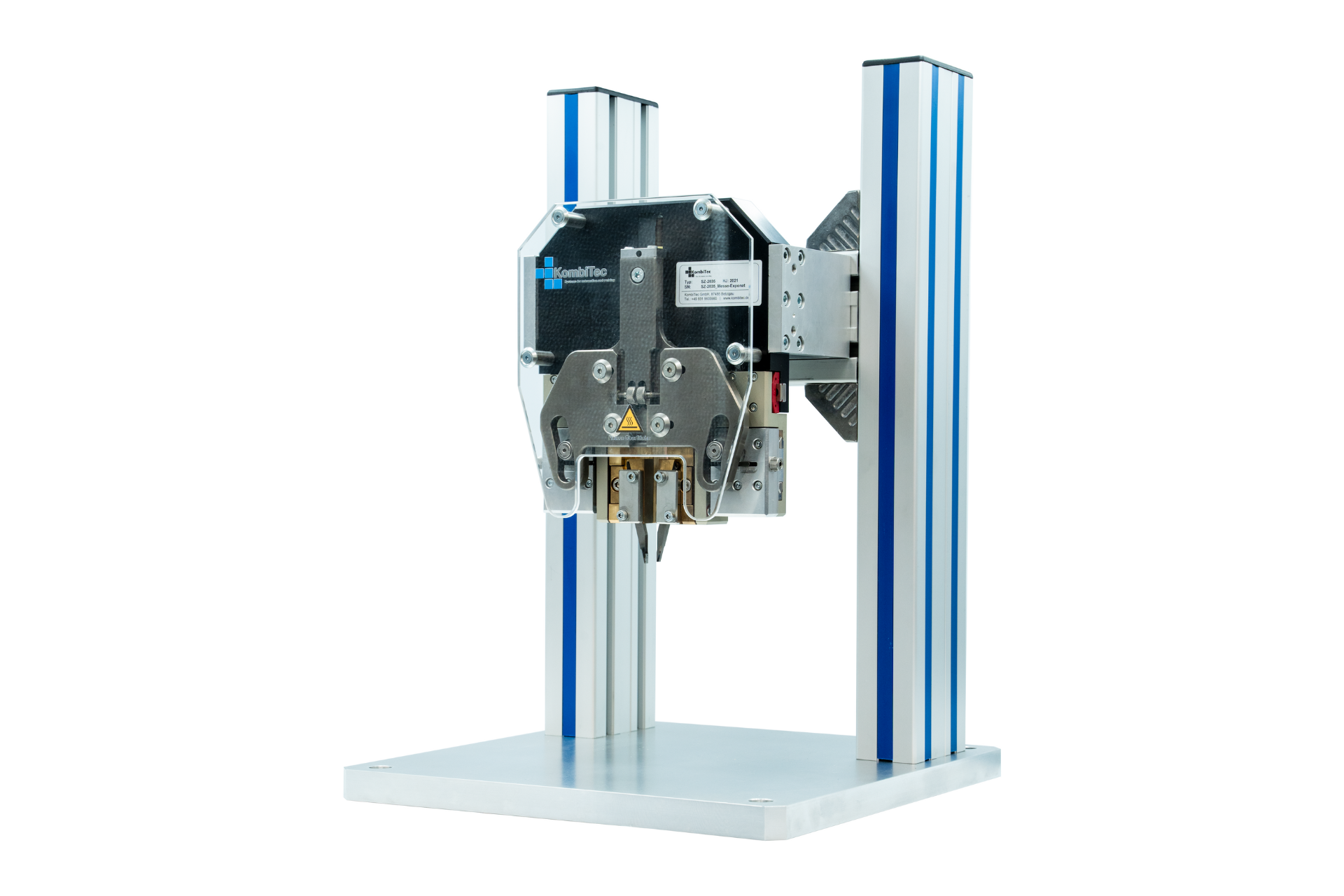

SZ-2035
- Welding force up to 300 N
- Weight approx. 6.2 kg (without welding head stand)
- Electrode stroke max. 6 mm
- Excellent repositioning performance
- Optional separate feed unit for horizontal stroke
- Displacement and force measurement can be retrofitted as an option
- Pneumatic force adjustment
- Electrode holder water-cooled and secured against rotation
- Precise electrode quick-change system
- Integrated path measurement for component control, sinking depth, residual thickness
- Individually selectable curve guidance
- Best reproducibility due to feed gates
- Modular principle and compatibility with many other KombiTec products
- Compact, flexible design with low dead weight
SZ-2035 — Fields of application
- Can be used for standard welds
- Spot and projection welding
- Hot staking
- Electrics/Electronics: Welding enameled wires in brackets, welding of compacted strands
- Contacting of coil wires
- In automated operation with high process reliability and reproducibility
