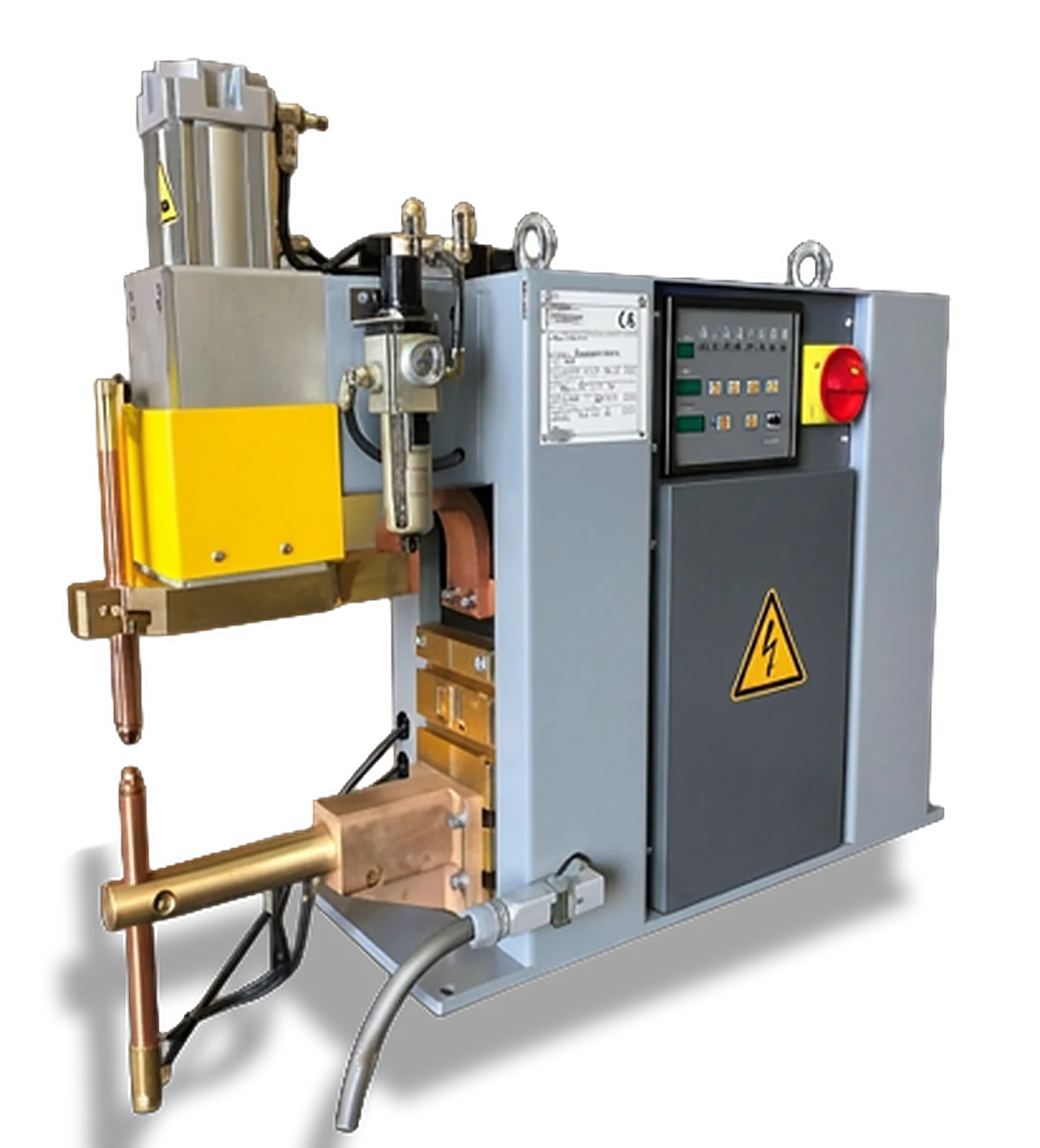

Bench Spot Welding Machine

RB-84

Bench spot welding machine with rugged steel frame construction, designed for precise and reliable spot welding in workshop environments. Compact design suitable for bench mounting with water-cooled transformer, arms, electrode holders and electrodes.

Standard Equipment

●Rugged steel frame
●Water-cooled transformer, arms, electrode holders and electrodes
●Synchronous welding control with SCR
●Safety thermostats
●In conformity with European safety standards and directives

Technical Data – RB-84

	Unit	RB-84-116	RB-84-126	RB-84-136	RB-84-138
Nominal power @ 50% duty cycle	kVA	15	25	35	35
Maximum short circuit current	kA	12	15	19	19.5
Max welding current	kA	9.6	12	15.2	15.6
Electrodes force (6 bar)	daN	185	185	185	300
3-phase supply voltage	V	400	400	400	400
Nominal frequency	Hz	50	50	50	50
Delayed fuses	A	25	45	63	63
Throat gap e	mm	60–160	60–160	60–160	60–160
Throat depth l	mm	270	270	270	195
Arm diameter	mm	35	35	35	—
Electrodes stroke	mm	60	60	60	60
Weight	kg	92	97	102	109

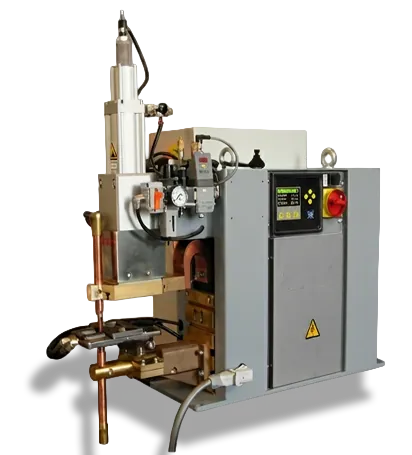

Bench Spot Welding Machine – Inverter Technology

RB-84 MFDC

Bench spot welding machine with inverter technology (MFDC). Compact design with rugged steel frame, water-cooled components and advanced welding control.

Standard Equipment

●Rugged steel frame
●Water-cooled transformer, arms, electrode holders and electrodes
●Synchronous welding control with SCR
●Safety thermostats
●Inverter technology (MFDC)

Technical Data – RB-84 MFDC

	Unit	RB-84-136-MFDC	RB-84-138-MFDC
Nominal power @ 50% duty cycle	kVA	35	35
Nominal power @ 20% duty cycle	kVA	55	55
Maximum short circuit current	kA	16	16
Max welding current	kA	12.8	12.8
Electrodes force (6 bar)	daN	185	300
3-phase supply voltage	V	400	400
Nominal frequency	Hz	50	50
Delayed fuses	A	32	32
Throat gap e	mm	32	32
Throat depth l	mm	275	275
Arm diameter	mm	35	—
Electrodes stroke	mm	60	60
Weight	kg	140	140
