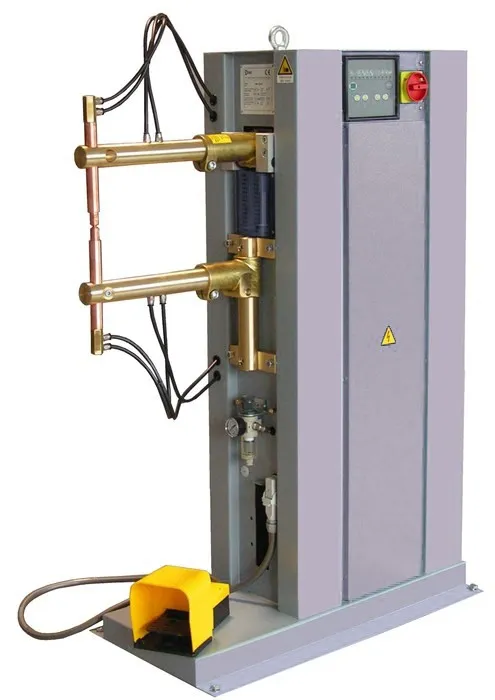

Rocker Arm Spot Welder
RB-81
Description
Rocker arm spot welder with rugged steel frame construction, featuring independently adjustable upper and lower arms. Available in two versions: RB-81-M with mechanical foot control and RB-81-P with pneumatical foot control.
Standard Equipment
- ●Rugged steel frame
- ●Water-cooled electrode-holders, electrodes, arms and transformer
- ●Upper arm adjustable for depth
- ●Lower arm adjustable for height
- ●Synchronous welding control with SCR
- ●Safety thermostats
Technical Data
| Unit | RB-81-M-15 RB-81-P-15 | RB-81-M-25 RB-81-P-25 | RB-81-M-35 RB-81-P-35 | RB-81-P-50 | |
|---|---|---|---|---|---|
| Nominal power @ 50% duty cycle | kVA | 15 | 25 | 35 | 50 |
| Maximum short circuit current | kA | 8.8 | 11.5 | 14 | 15.1 |
| Maximum welding current | kA | 6.4 | 9.2 | 11.2 | 12 |
| Electrodes force (6 bar for BSP) with 300 mm throat depth | daN | 144-165 | 144-165 | 144-165 | 144-165 |
| Max welding capacity on mild steel | mm | 2+2 | 2.5+2.5 | 3+3 | 4+4 |
| Supply voltage (*) | V | 400 | 400 | 400 | 400 |
| Frequency (*) | Hz | 50 | 50 | 50 | 50 |
| Delayed fuses | A | 25 | 45 | 63 | 80 |
| Throat gap e | mm | 220-340 | 220 | 220 | 220 |
| Throat depth l with 500 mm arms (adjustable) | mm | 500 | 500 | 500 | 500 |
| Throat depth l with 700 mm arms (adjustable) | mm | 700 | 700 | 700 | 700 |
| Arms diameter | mm | 45 | 45 | 45 | 45 |
| Electrodes stroke | mm | 6-50 | 6-50 | 6-50 | 6-50 |
| Weight (with 500mm arms) | kg | 125 | 130 | 135 | 135 |
