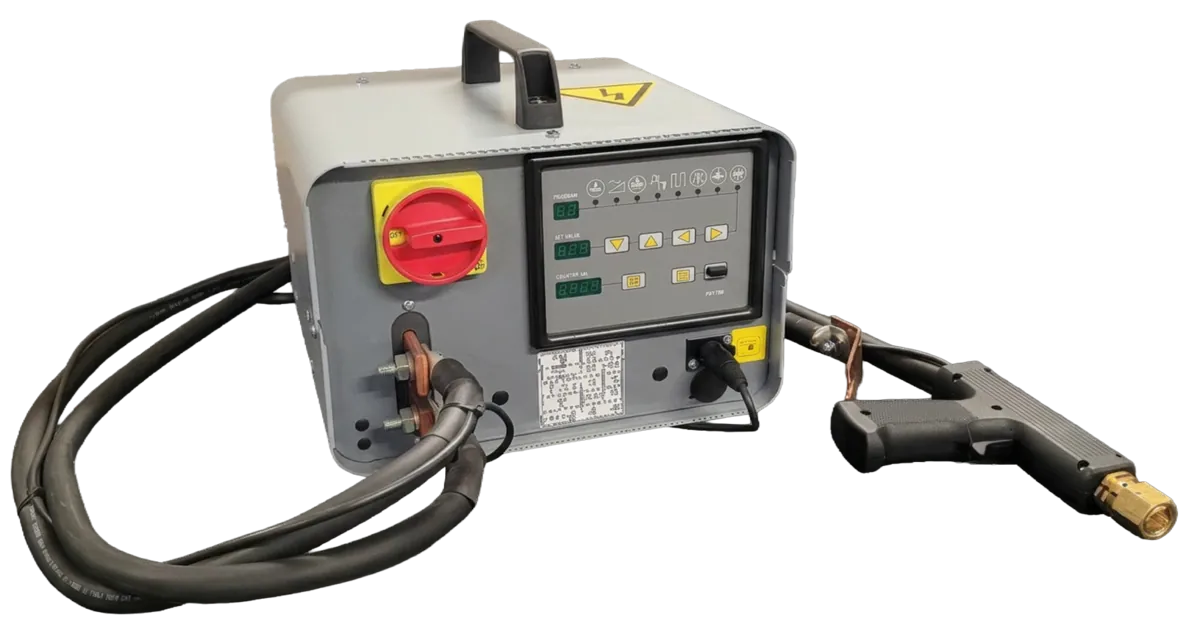

Stud Welding Machine
RP-84/3,5-ECO
Description
Stud welding machine designed for welding threaded studs. Compact and portable unit with welding gun and cables included. Conforms to European safety standards and directives.
Standard Equipment
- ●Studder gun with welding cable
- ●Ground cable
- ●Accessories kit
- ●Slide hammer
- ●In conformity with European safety standards and directives
Technical Data
| Unit | RP-84/3,5-ECO | RP-84/5-ECO | |
|---|---|---|---|
| Nominal power @ 50% duty cycle | kVA | 3,5 | 5 |
| Maximum short circuit current | kA | 3,0 | 4,0 |
| Max welding current | kA | 12,8 | 12,8 |
| Secondary voltage | V | 6,6 | 6,3 |
| Nominal frequency | Hz | 50* | 50* |
| Spotter cables length | mm | 1,5+1,8 | 1,5+1,8 |
| Weight | kg | 20 | 32 |
