Products
Battery and Accumulator Processing
Compact welding systems and electrode holders designed specifically for battery and accumulator gap welding.

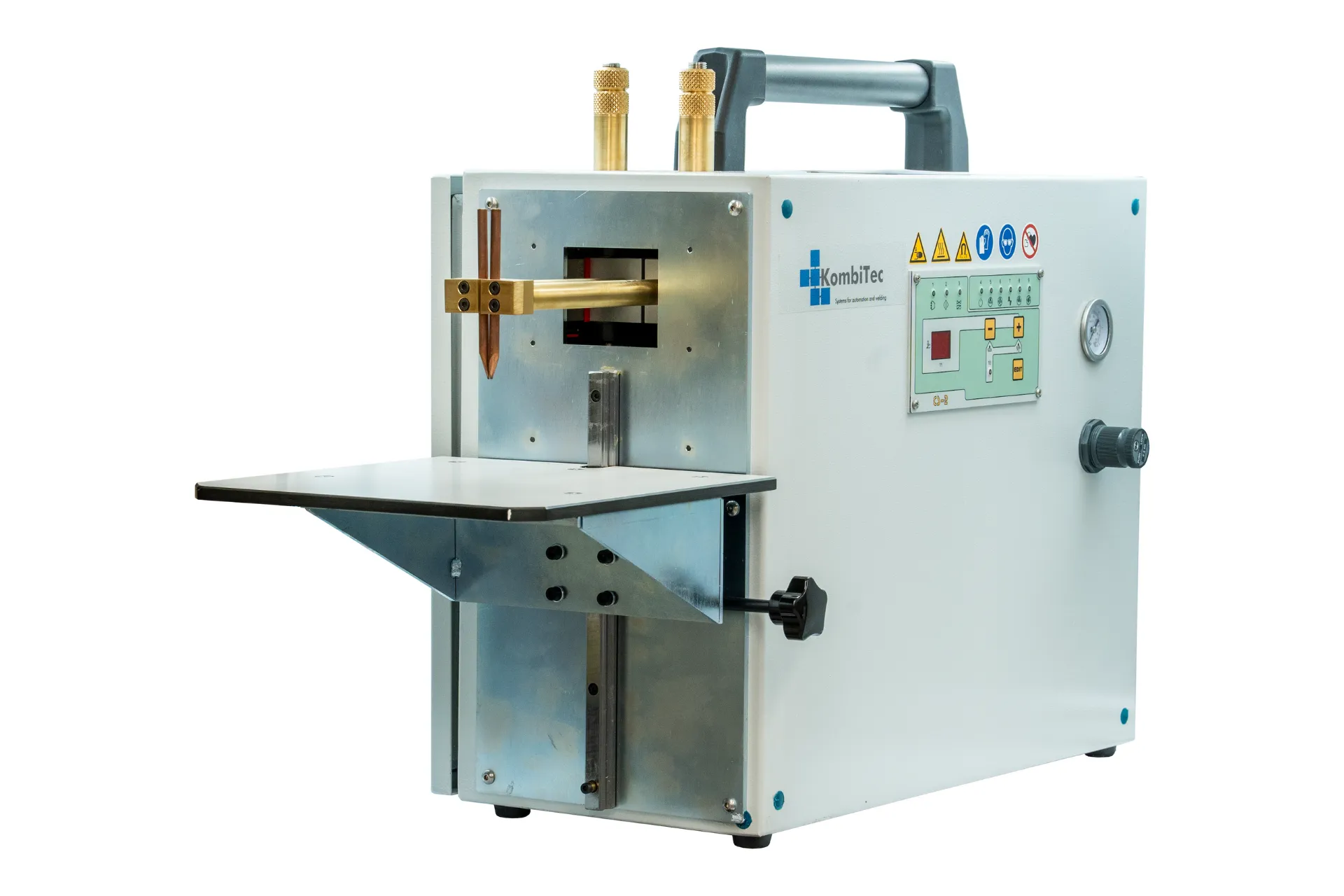

Compact system KT-SST-ACBAT-3-00
- 15kHz Technology
- Power 4.0 KVA / single phase / 230V/16A
- Simple, intuitive operation with single-line display
- Compressed air connection (>5.0 bar, oil- and water-free)
- Built-in pneumatics, incl. pressure dosage adjustment and electrode lifting cylinders
- Control with integrated transformer in compact housing
- Dimensions L/W/H [mm]: 750 x 270 x 470
- Weight: approx. 65kg
Fields of application
- Developed as a compact solution for battery and battery welding using the gap welding process
- Electrode holder arms individually driven and adjustable, arm length approx. 100mm
- Electrode spacing adjustable between 3 and 12mm
- Electrode angle freely adjustable
- Worktop infinitely variable in height on ball slide by means of clamping lever
- Adjustable distance between 5mm and 200mm
Shipment
- With smooth-running, stable foot switch for starting the welding process
- Pre-wired with connection cable (230V/16A or 380V/32A)

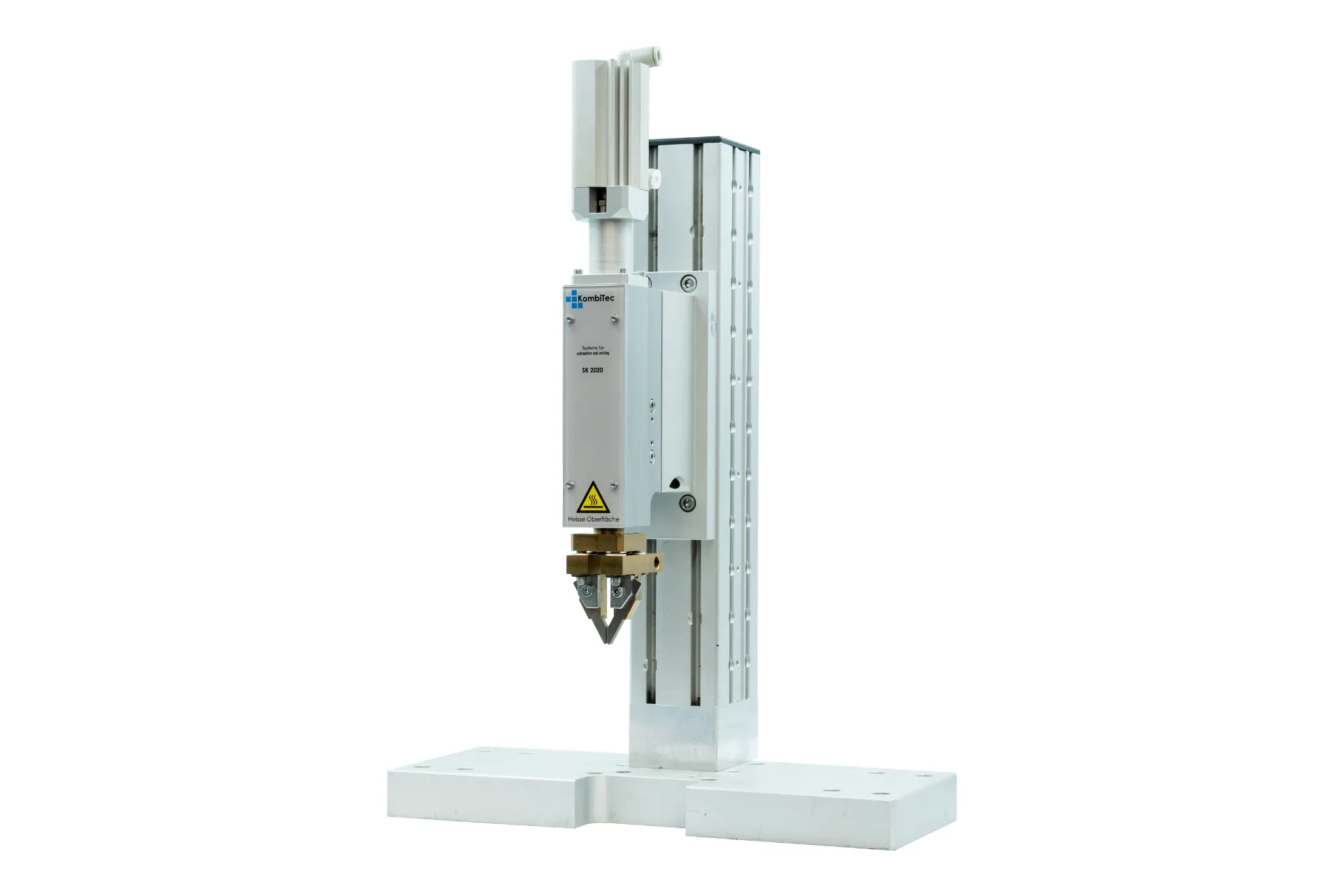

Electrode holder SK-2020-DE-000
- Double electrode holder
- For rectangular electrodes 4×6 mm
- Oscillating electrode holders
- Gap distance easily adjustable in wide ranges
- Connection of the power cables on the rear side
- Ideal for rechargeable batteries and high performance batteries
- Suitable for: SK-2015, SK-2020

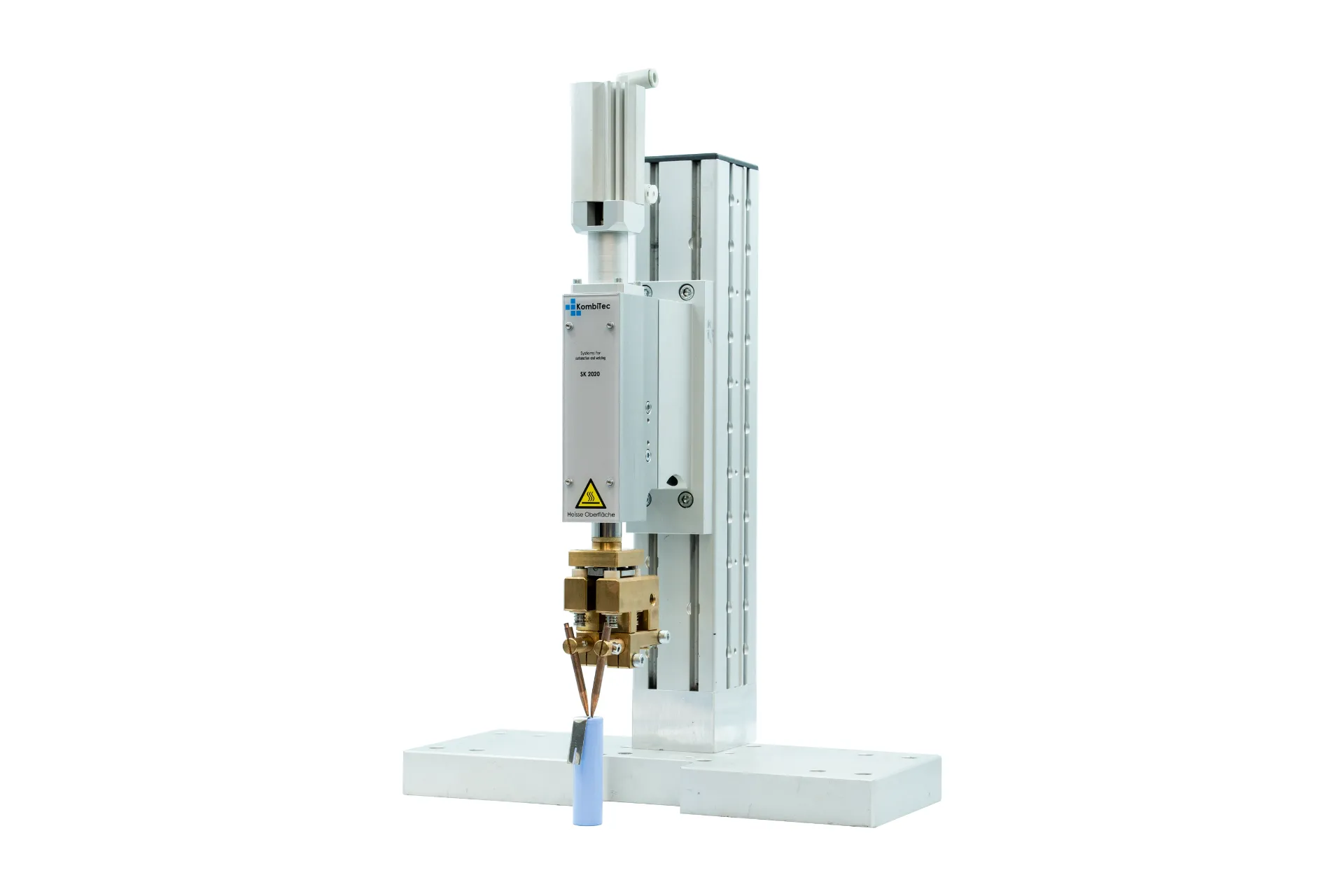

Electrode holder SK-2020-DE-100
- Double electrode holder
- For round electrodes with Ø 6 mm
- Oscillating electrode holders
- Gap distance easily adjustable in wide ranges
- Ideal for batteries and accumulators with medium and low performance
- Suitable for: SK-2015, SK-2020

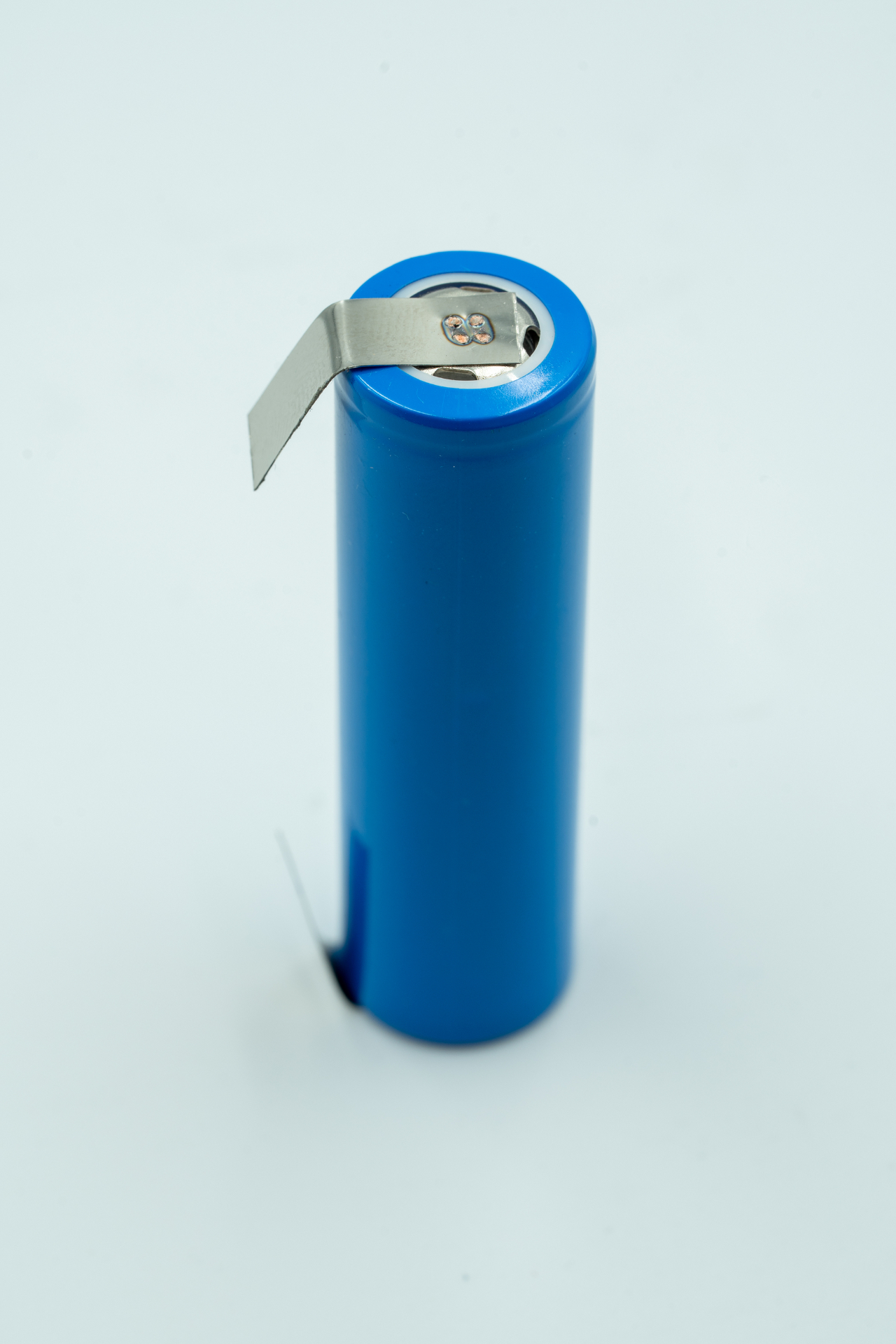

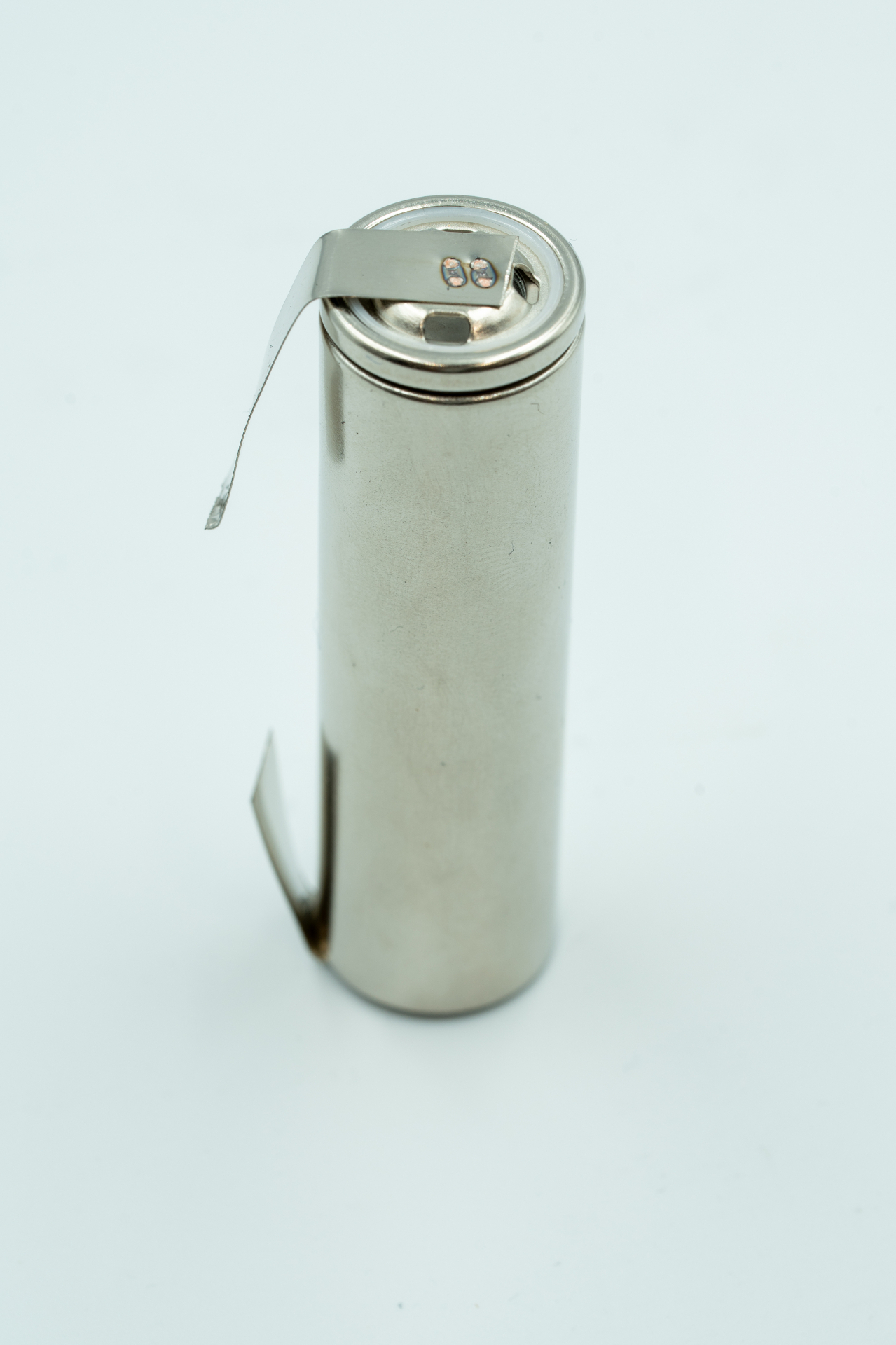

Application Examples
Interested in Battery and Accumulator Processing?
Get in touch with our team for a tailored solution.
Send Inquiry
